ICT Billet SBC Vehicle to LS Engine - Motor Mount Adapter Plate - Universal Swap Bracket Small Block LS Conversion Adjustable LS1 LS3 LS2 LQ4 LQ9 LS6 L92 L99 L33 LR4 Billet 551628

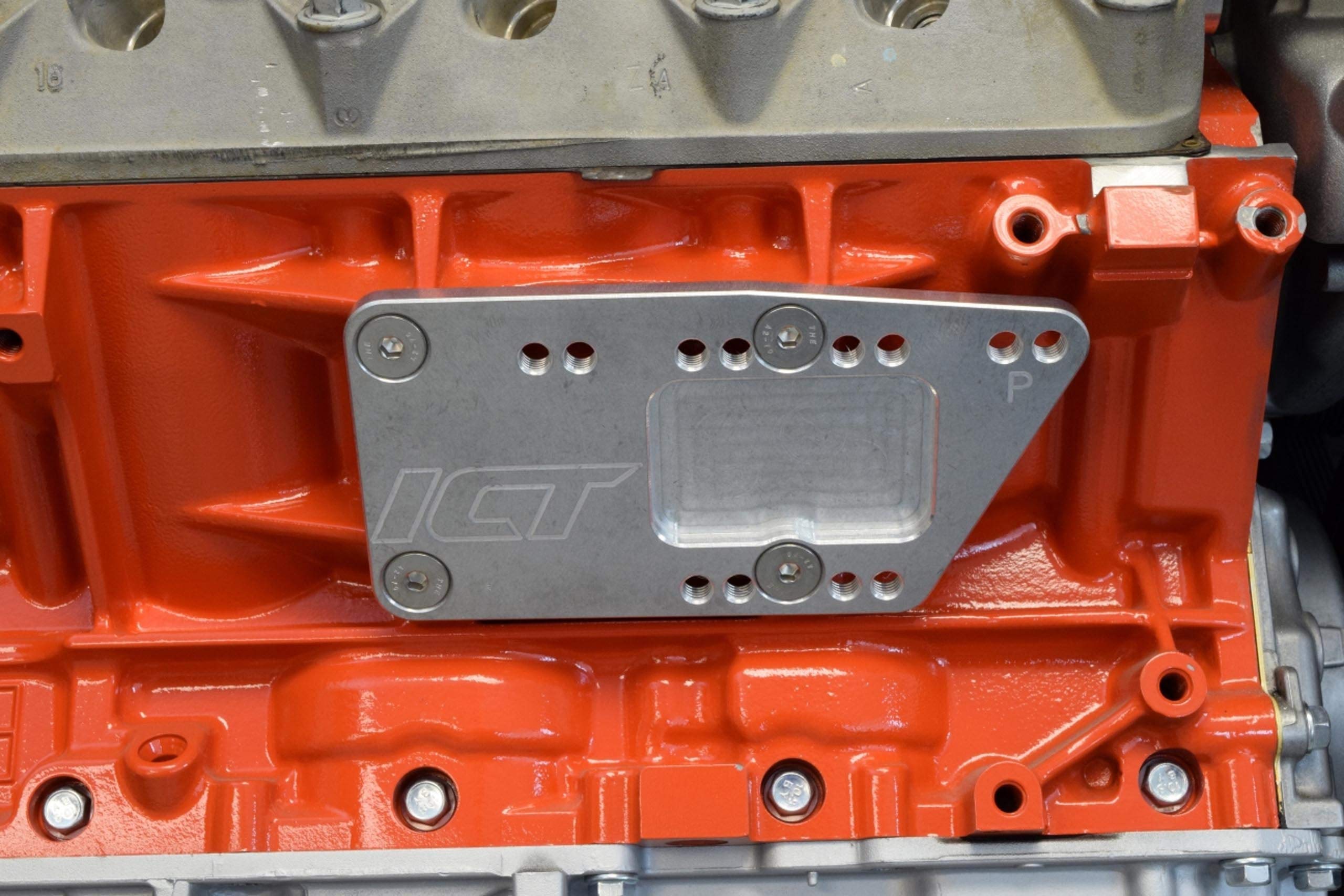

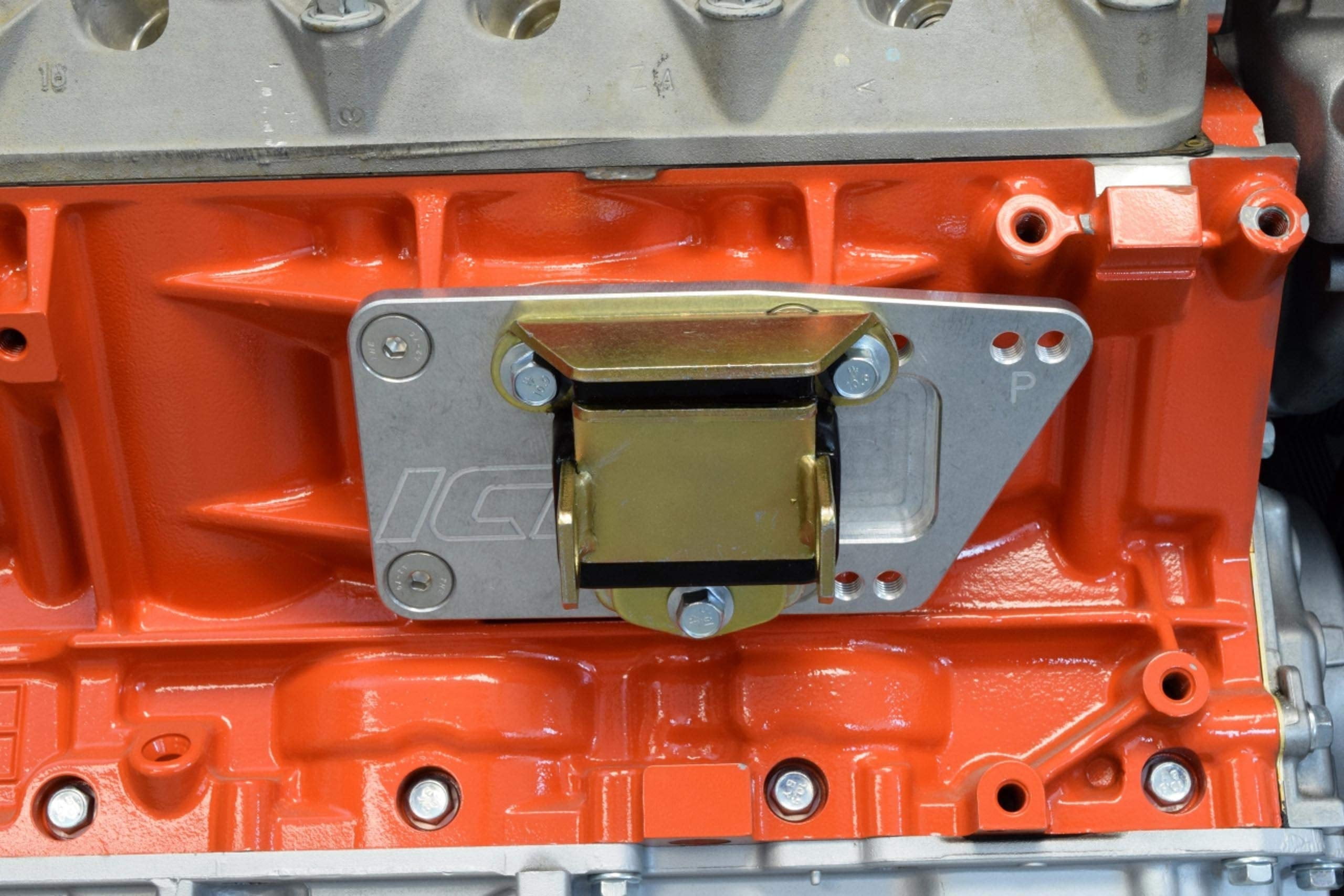

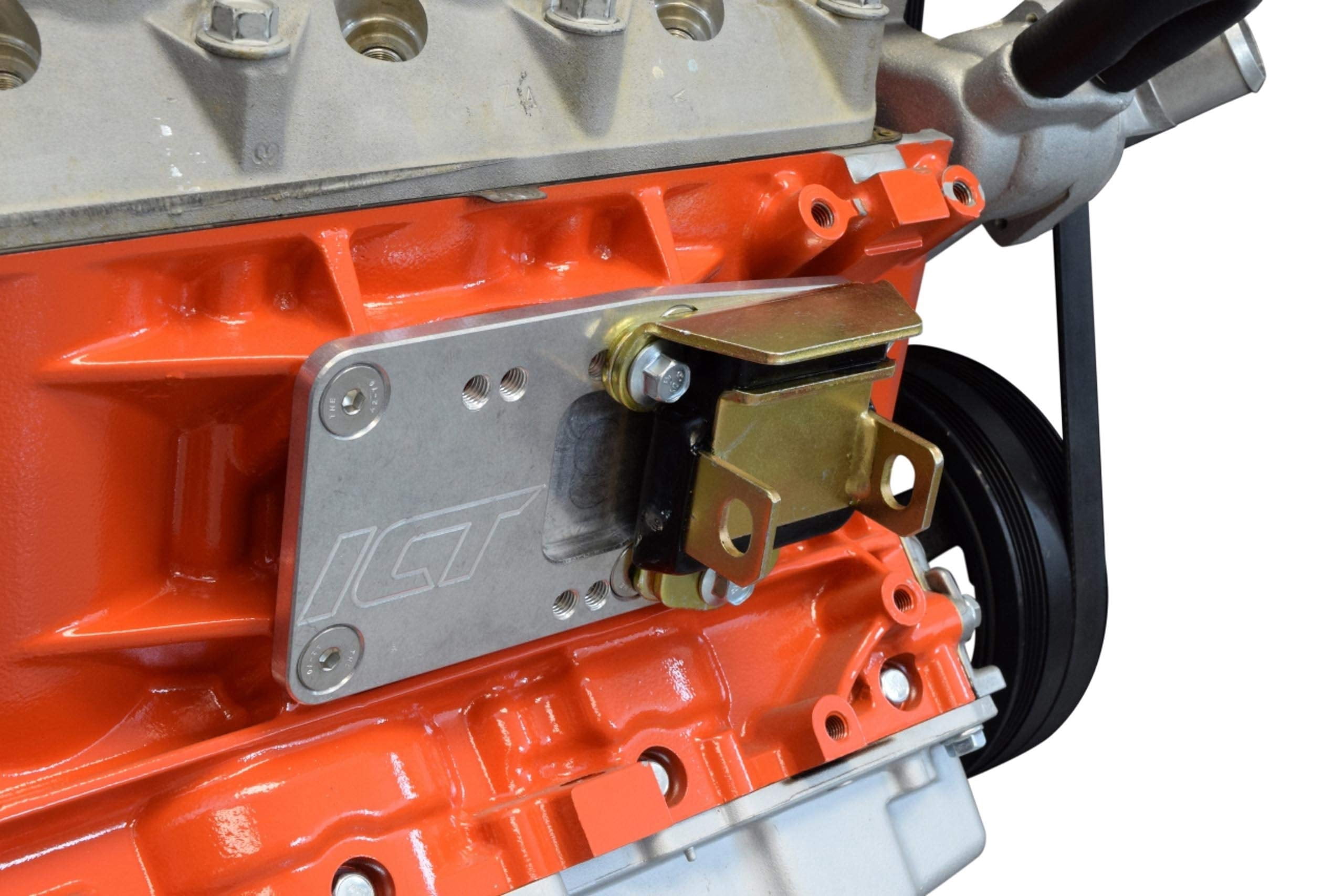

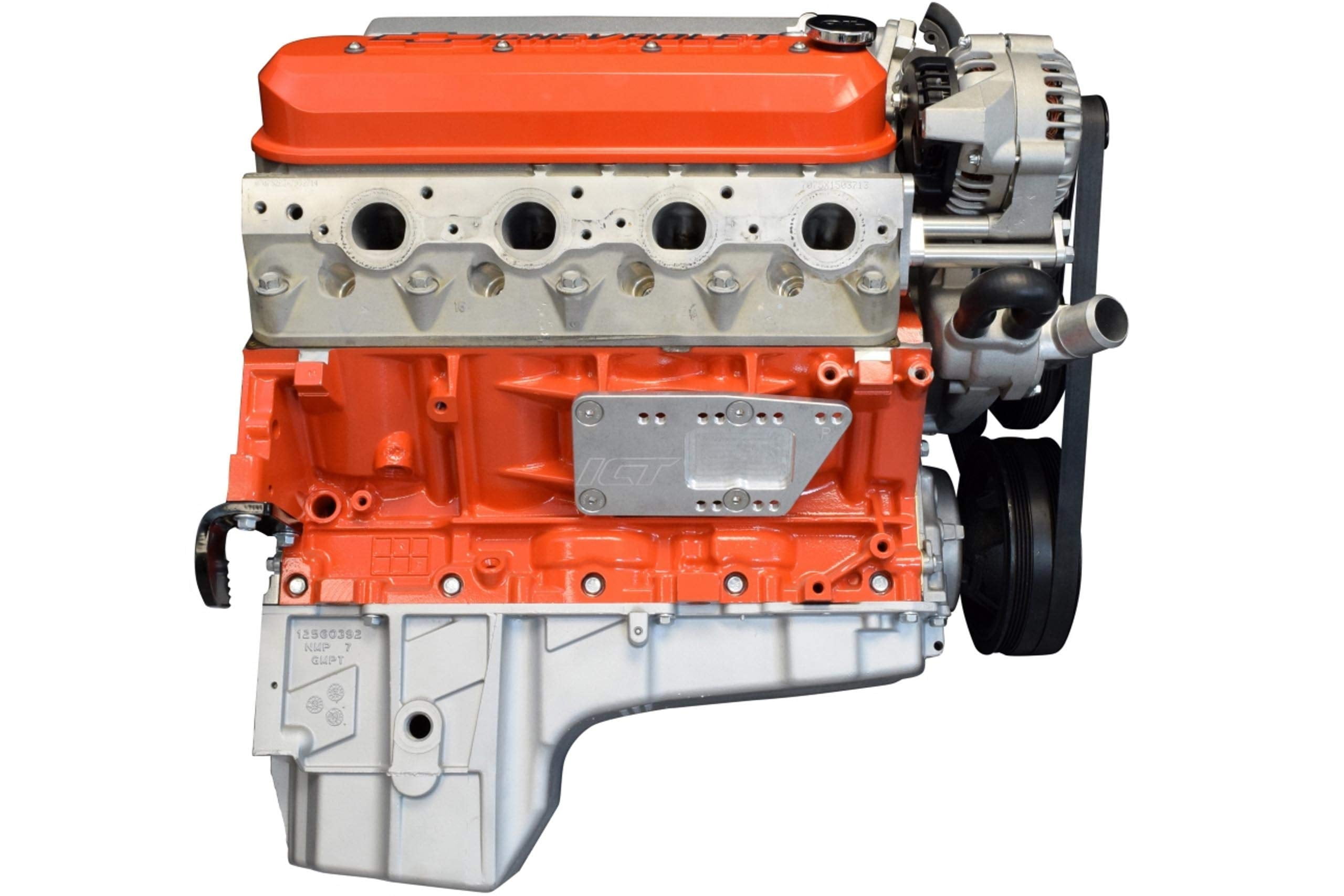

<p>LS Engine Swap / Engine Mount Brackets</p> &nbsp; These brackets allow a LS series engine to be bolted into a vehicle that originally had a small block chevy engine <br> Re-use your small block engine mounts (3 bolt flange mounts, see additional photos), then bolt them to these ICT adapters using the included M10 hardware. <br> <br> <ul><li>Made with OEM specifications for the best possible fitment into your vehicle</li><li>These plates will move the crankshaft centerline up .17" in the vehicle&nbsp;</li><li>Made in Wichita, KS from aerospace grade, USA 3/8" billet aluminum</li><li>Includes: 2 adapter plates, 8 flat head bolts, and 6 flange M10-1.5 bolts<br></li><li>Natural aluminum finish</li><li>See our other listings for all your LS swap needs. Check out our "Tips and Guides" section on our page&nbsp;</li></ul> &nbsp; There are 4 positions for maximum adjustment of engine (from .100" forward of OEM&nbsp;bellhousing position&nbsp;[due to bolt interference, OEM location is not possible for any brand of flat style swap plates] ~forward most position shown in photos~,&nbsp; Secondary positions are:&nbsp;.600", &nbsp;1.86", and&nbsp;2.36" engine moved frontward)&nbsp; <br> These swap plates will shift the crankshaft centerline up .177" above factory small block location. &nbsp; At ICT Billet we use GM factory specifications to determine exact mounting locations for the most accurate engine positioning. &nbsp;

• Made with OEM specifications for the best possible fitment into your vehicle
• These plates will move the crankshaft centerline up .17" in the vehicle
• Made in Wichita, Kansas from aerospace grade, USA produced, 3/8" billet aluminum

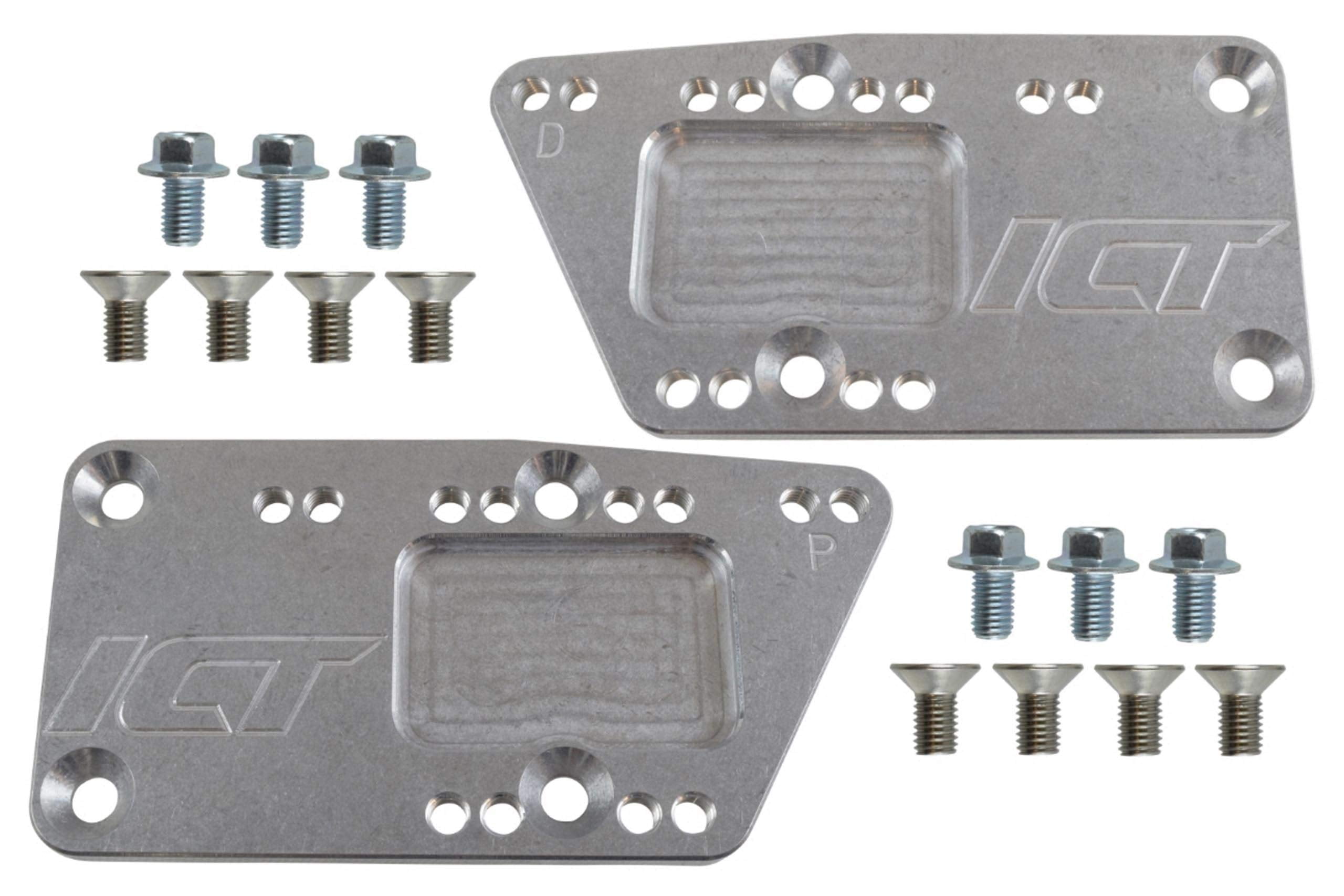

• Includes: 2 adapter plates, 8 flat head bolts, and 6 flange M10-1.5 bolts (plates are M10 threaded, use the hardware included)
• Natural aluminum finish
